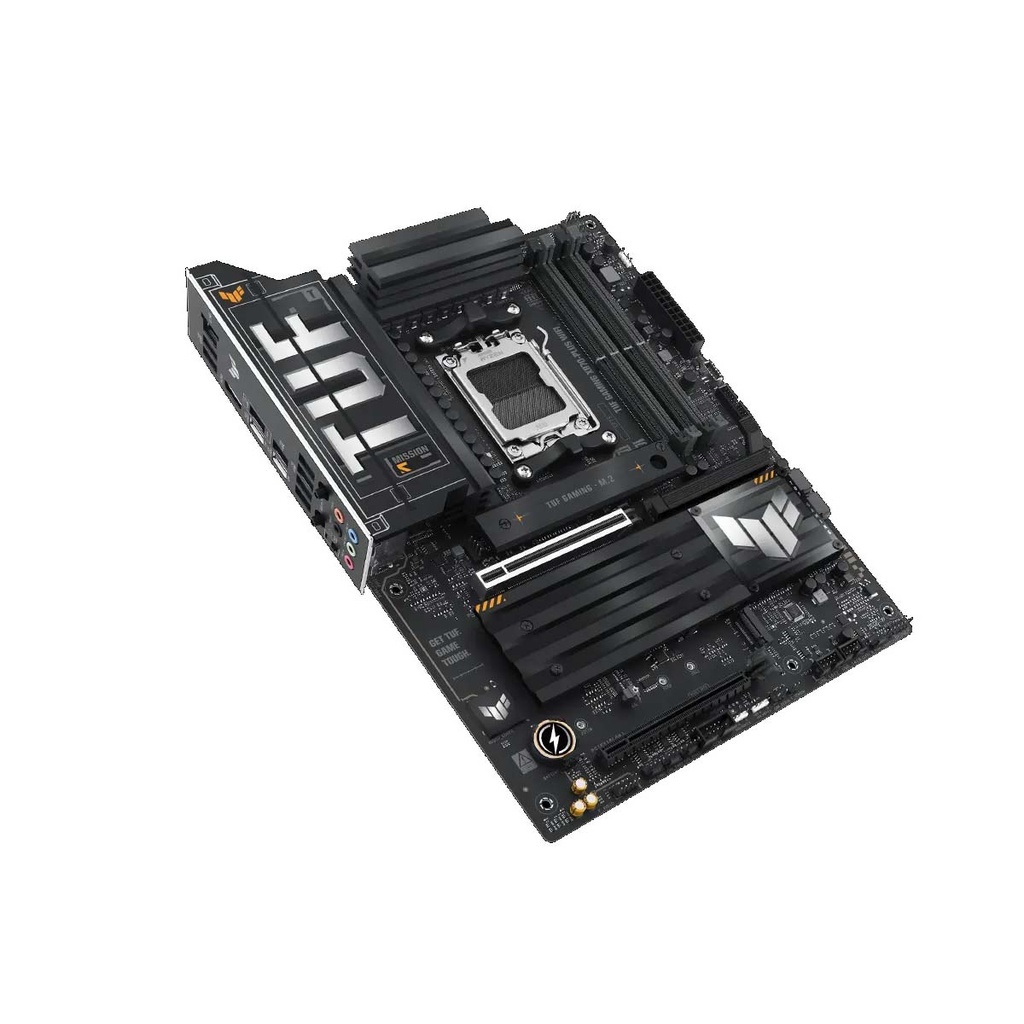

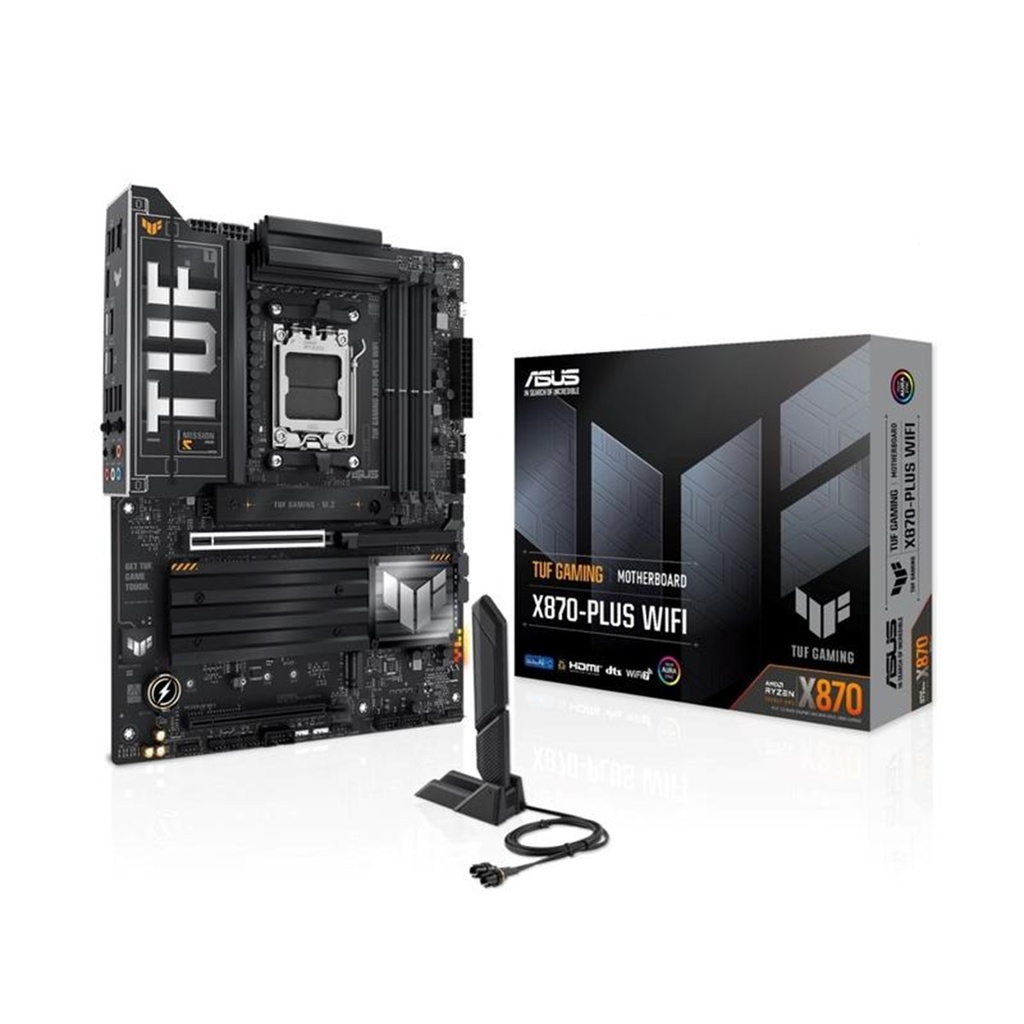

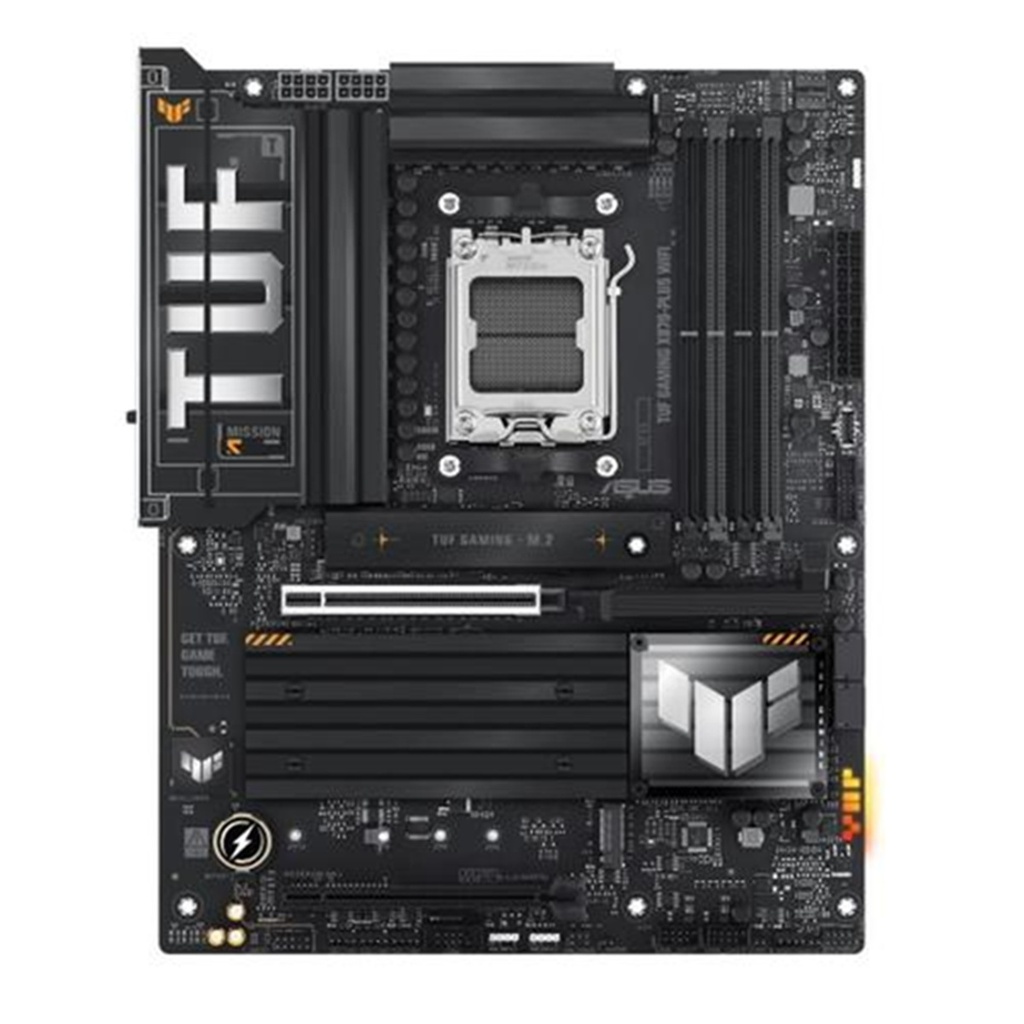

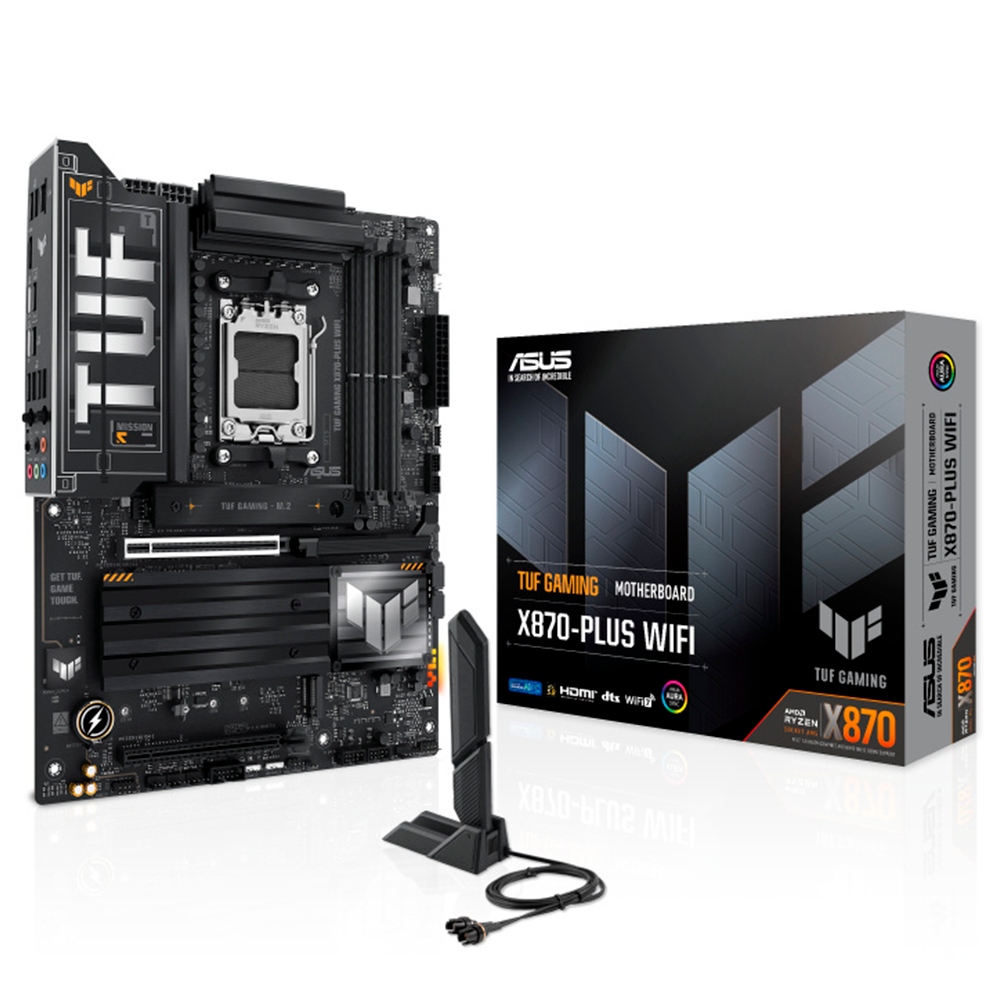

MOTHERBOARD ASUS (TUF GAMING X870-PLUS WIFI)SOCKET AM5,4*DDR5,HDMI,2 USB4,PCI-E 5.0,WIFI7,ATX ASUS TUF GAMING X870-PLUS WIFI
Especificaciones
| Usb type-c® power delivery output | 5v/9v max.3a, 12v max.2.5a, 15v max.2a. audio |
| Refer to https | //www. asus. com/support/download-center/ for cpu support list. chipset |
| Adjustments will be made based on the specifications of mass-produced memory products available on the market. * supported memory types, data rate (speed), and number of dram modules vary depending on the cpu and memory configuration, for more information please refer to cpu/memory support list under the support tab of product information site or visit https | //www. asus. com/support/download-center/. * non-ecc, un-buffered ddr5 memory supports on-die ecc function. graficos |
| Dimensiones | 27.50x7.00x35.50 |
| Accesorios | Cables |
| Sistema operativo | Windows 11 |
| Memoria | 4 x dimm slots, max.192gb, ddr5 |
| Wifi | Si |
| Interfaces de disco de almacenamiento soportados | M.2, SATA III |
| Factor de forma | Atx form factor |
| Canales de salida de audio | 7.1 canales |
| Bluetooth | Si |
| Componente para | PC |
| Profundidad | 244 mm |
| Cantidad de puertos USB 2.0 | 1 |
| Supports | Jack-detection, multi-streaming, front panel jack-retasking |
| Canales de memoria | Doble canal |
| Memoria interna máxima | 192 GB |
| Ethernet | Si |
| Cantidad de puertos tipo A USB 3.2 Gen 1 (3.1 Gen 1) | 4 |
| Número de puertos HDMI | 1 |
| Versión de Bluetooth | 5.4 |
| Número de HDDs soportados | 2 |
| Conector de potencia ATX (24 pines) | Si |
| tipos de memoria compatibles | DDR5-SDRAM |
| Tipo de ranuras de memoria | DIMM |
| Socket de procesador | Enchufe AM5 |
| Software | Asus exclusive software |
| Número de ranuras de memoria | 4 |
| ECC | Si |
| Compatibilidad con RAID | Si |
| Memoria sin buffer | Si |
| Adaptador gráfico en tablero | No |
| Fabricante de procesador | AMD |
| Procesador compatible | AMD Ryzen 7 7th Gen, AMD Ryzen 7 8th Gen, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD Ryzen 9 9th Gen |
| No ECC | Si |
| USB 2.0, conectores | 2 |
| Conectores USB 3.2 Gen 1 (3.1 Gen 1) | 1 |
| Número de conectores SATA III | 2 |
| Conector de audio en panel frontal | Si |
| Conector de ventilador CPU | Si |
| Número de conectores a ventilador de chasis | 4 |
| Conector de energía EPS (8-pin) | Si |
| Cantidad de puertos tipo A USB 3.2 Gen 2 (3.1 Gen 2) | 3 |
| Tipo de interfaz ethernet | 2.5 Gigabit Ethernet, Ethernet rápido, Gigabit Ethernet |
| Familia del chipset | AMD |
| Chip de sonido | Realtek ALC1220P |
| Número de ranuras M.2 (M) | 4 |
| Tipos de BIOS | UEFI AMI |
| Número de conectores COM | 1 |
| Tipos de unidades de almacenamiento admitidas | HDD & SSD |
| Niveles RAID | 0, 1, 5, 10 |
| Soporte para proceso paralelo | No compatible |
| Conector eléctrico de 12 V | Si |
| Número de unidades de almacenamiento compatibles | 6 |
| Bios | 256 mb flash rom, uefi ami bios |
| Output | 5v/9v max.3a, 12v max.2.5a, 15v max.2a |
| Ranuras PCI Express x16 (Gen 4.x) | 1 |
| Color del producto | Negro |
| Sistemas operativos Windows soportados | Windows 11 |
| Puertos Ethernet LAN (RJ-45) | 1 |
| Entrada de micrófono | Si |
| Tipo de conector USB | USB tipo A, USB Tipo C |
| Factor de forma de la tarjeta madre | ATX |
| Chipset de tarjeta madre | AMD X870 |
| Tamaño de memoria de BIOS | 256 MB/s |
| Estándares de Wi-Fi | Wi-Fi 7 (802.11be) |
| Cantidad de puertos USB4 Gen 3x2 | 2 |
| Velocidad de reloj de la memoria compatible (máx.) | 8000 MHz |
| Support | Up to 30w fast charging and usb wattage watcher |
| Please check the pcie bifurcation table on the support site (https | //www. asus. com/support/faq/1037507/). ** the pciex16(g5) shares bandwidth with m.2_2. the pciex16(g5) will run to x8 mode when m.2_2 runs. *** specifications vary by cpu types. **** the pciex16(g4) shares bandwidth with m.2_4. the pciex16(g4) will be disabled when m.2_4 runs. - to ensure compatibility of the device installed, please refer to https |
| Máximo estándar Wi-Fi | Wi-Fi 7 (802.11be) |
| Conectores USB 3.2 Gen 2x2 | 1 |
